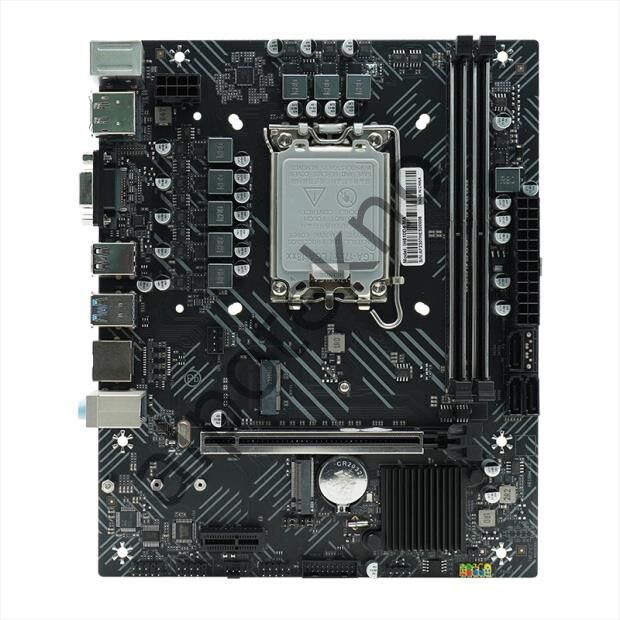

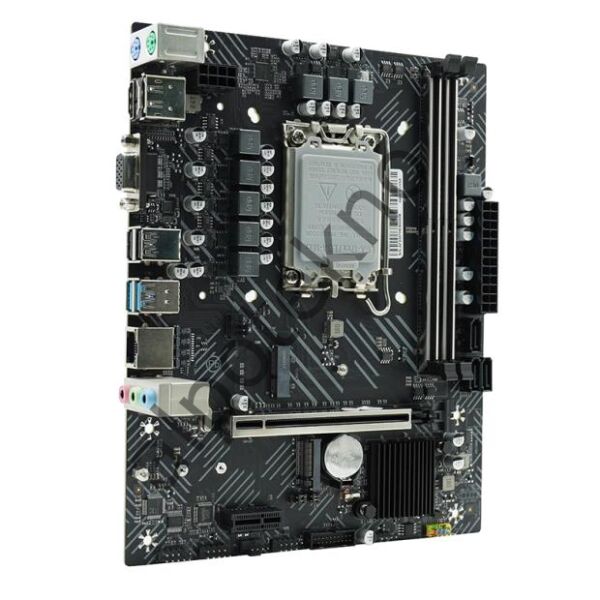

AFOX IH610D4-MA-V4 2xDDR4 VGA/HDMI/DP 1xM.2 1xGLAN 1700P ANAKART

AFOX IH610D4-MA-V4 2xDDR4 VGA/HDMI/DP 1xM.2 1xGLAN 1700P ANAKART

• Platform: INTEL Socket 1700
• Model Name :IH610D4-MA-V4
• Chipset:Intel® H610
• CPU Supports
• INTEL Socket 1700
• Supports Intel 12th / 13th / 14th Generation
• Intel Core™ i9 / i7 / i5 / i3 / Pentium® / Celeron®
• FSB:2133 / 2400 / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C)
• Memory:Dual Channel DDR4 2133 / 2400 / 2666 / 2800(O.C) / 3000(O.C) / 3200(O.C) MHz 1.2V
• Dimm:2 x Memory Slots (Max. 64GB)
• Onboard Graphics:Intel® HD Graphics
• PCI/PCI-E Slots
• 1 x PCI Express x16 4.0 slot
• 1 x PCI Express x1 slot
• 1 x Mini PCI-E Slot (Supports 4G/WIFI Module)
• SATA
• 3 x SATA III
• 1 x M.2 (PCIe NVMe Gen3 x4 & SATA3)
• IDE:N/A
• Audio:Realtek 662 on board, Supports 6-channel audio-out
• LAN
• Realtek RTL8111 Gigabit Ethernet on board
• Wake-On-LAN
• Back Panel I/Os
• 1 x D-Sub (VGA)
• 1 x HDMI
• 1 x DP Port
• 1 x PS/2 Mouse
• 1 x PS/2 Keyboard
• 2 x USB 3.0
• 2 x USB 2.0
• 1 x RJ-45 LAN
• 3 x HD Audio Jack (Line in / Front Speaker / Microphone)
• On-Board Pinheaders/Connectors
• 1 x USB 2.0 pinheader (supports 2 ek USB 2.0)
• 1 x USB 3.0 pinheader (supports 2 ek USB 3.0)
• 1 x Front Panel Audio pinheader
• 1 x COM
• BIOS
• UEFI BIOS
• Form Factor
• Micro-ATX (18 × 22 cm)
• Mounting
• 6 mounting holes
